$52.50The Story
The (033-9-0023) K33 ICB CO2 sensor (formerly known as SE-0025) measures up to 10% carbon dioxide in biological or scientific applications where high levels of CO2 are maintained in an enclosed environment.
Features
- Long-life NDIR CO2 Sampling Sensor
- Individually calibrated for peak performance
- Easy communication using industry standard I/O
- Properly configured, can take a sample containing almost 100% humidity
Models
- 033-9-0023 K33 ICB 10% CO2 Sensor Only - for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor. For our K33 ICB 30% CO2 sensor click here.

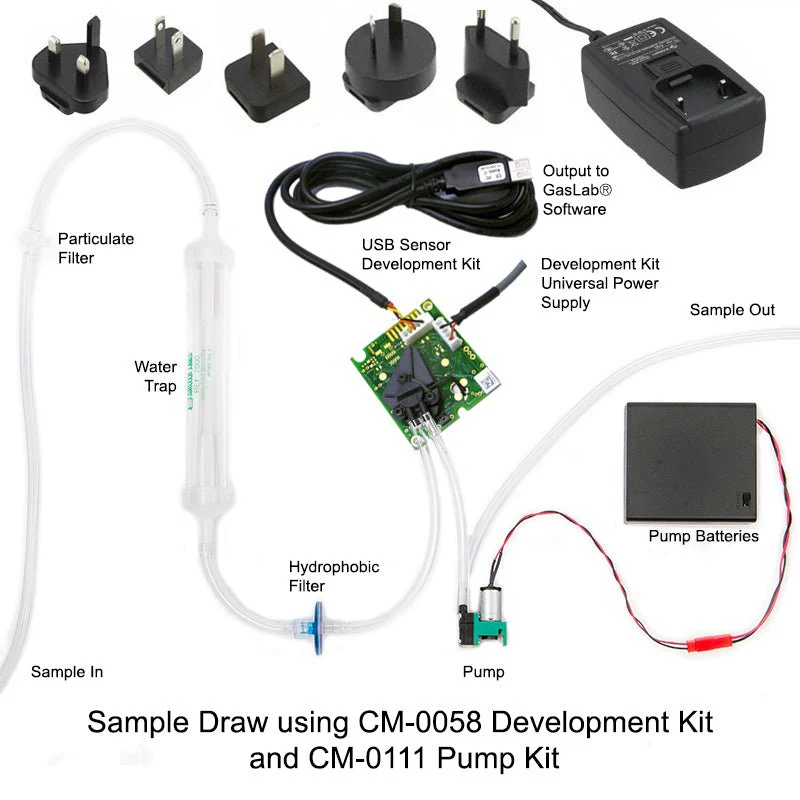

- CM-0058 K33 ICB 10% CO2 Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via USB. The Devkit includes a K33 ICB sensor with pre-soldered connectors that provide power and connectivity. Use it for evaluation, rapid application development or for experiments. Uses our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.
Specifications
- Measurement Range: 0 – 100,000 ppm (0-10%)
- CO2 Measurement: Non-dispersive infrared (NDIR)
- Response Time: < 20s, sampling @ 0.2 l/min gas flow
- Accuracy: ±0.3%vol (CO2 ) ±3% of measured value
- Resolution: 0.001% / 10ppm
- Repeatability: ± 100ppm vol ± 1% of measured value
- Sampling Method: Sample tube draw (diffusion with cap removed)
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check of the sensor module on startup
- Dimensions: 2.0 × 2.25 × 0.62 inches
- Sensor Life Expectancy: > 15 years
Sensor Electrical / Mechanical
- Power Input: 5-14 VDC
- Current Consumption: 40 mA average
Development Kit Includes
- 6’ (1.8m) USB -UART bridge cable (non-standard)
- 6VDC universal wall power supply with connector for sensor 120/240 VAC 50/60 Hz
- 4x AA battery pack w/ connector for sensor
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Documents
Senseair ISO Certification (pdf)
Communication Protocols Manuals (zip)
Sensor Calibration Procedure (pdf)
Free Easy-to-use GasLab™ Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and is free to use with our products.
Accessories
- Sample Draw Pump Kit - includes pump, hose, filters
- USB Extension Cable - extend USB cable 16 ft. (5m)
- Probe Enclosure for Development Kits with hydrophobic filters.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The (033-9-0023) K33 ICB CO2 sensor (formerly known as SE-0025) measures up to 10% carbon dioxide in biological or scientific applications where high levels of CO2 are maintained in an enclosed environment.
Features
- Long-life NDIR CO2 Sampling Sensor
- Individually calibrated for peak performance
- Easy communication using industry standard I/O
- Properly configured, can take a sample containing almost 100% humidity
Models
- 033-9-0023 K33 ICB 10% CO2 Sensor Only - for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor. For our K33 ICB 30% CO2 sensor click here.
- CM-0058 K33 ICB 10% CO2 Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via USB. The Devkit includes a K33 ICB sensor with pre-soldered connectors that provide power and connectivity. Use it for evaluation, rapid application development or for experiments. Uses our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.
Specifications
- Measurement Range: 0 – 100,000 ppm (0-10%)
- CO2 Measurement: Non-dispersive infrared (NDIR)
- Response Time: < 20s, sampling @ 0.2 l/min gas flow
- Accuracy: ±0.3%vol (CO2 ) ±3% of measured value
- Resolution: 0.001% / 10ppm
- Repeatability: ± 100ppm vol ± 1% of measured value
- Sampling Method: Sample tube draw (diffusion with cap removed)
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check of the sensor module on startup
- Dimensions: 2.0 × 2.25 × 0.62 inches
- Sensor Life Expectancy: > 15 years
Sensor Electrical / Mechanical
- Power Input: 5-14 VDC
- Current Consumption: 40 mA average
Development Kit Includes
- 6’ (1.8m) USB -UART bridge cable (non-standard)
- 6VDC universal wall power supply with connector for sensor 120/240 VAC 50/60 Hz
- 4x AA battery pack w/ connector for sensor
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Documents
Senseair ISO Certification (pdf)
Communication Protocols Manuals (zip)
Sensor Calibration Procedure (pdf)
Free Easy-to-use GasLab™ Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and is free to use with our products.
Accessories
- Sample Draw Pump Kit - includes pump, hose, filters
- USB Extension Cable - extend USB cable 16 ft. (5m)
- Probe Enclosure for Development Kits with hydrophobic filters.
