$119.70The Story

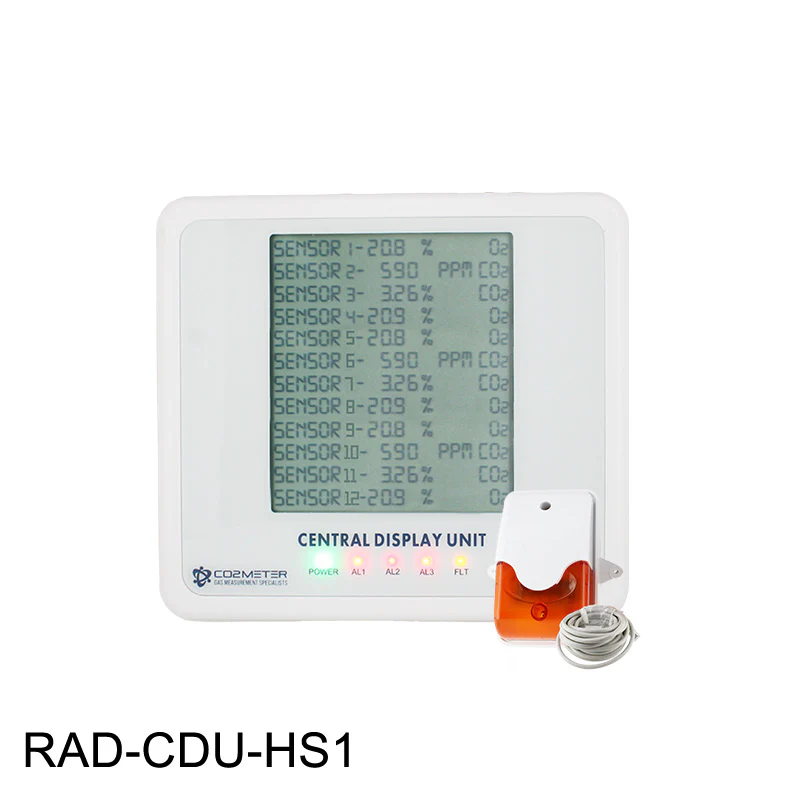

The Central Display Unit (CDU-HS1) for Gas Safety Alarms with Horn Strobe is designed to provide real-time visibility of CO2 or O2 levels, alarms, and historical trends; enabling users to respond quickly to a potential gas hazard all from a single centralized display unit.
The CDU also serves as a critical source in ensuring compliance with industry regulations (OSHA/NIOSH/NBIC) by displaying the necessary data from the gas detection alarms across multiple locations from one dashboard.
When paired with the RAD-0102-6-HS2 or RAD-0002-ZR-HS2, the CDU acts as the command hub, consolidating real-time gas readings and relaying critical alerts to safety personnel.
To get started, ensure you have a proper RAD-0102-6 or RAD-0002-ZR to integrate or contact a sales specialist who can help you with a custom system for your application.
Features
- Connects up to 12 gas sensors for visual display
- 3 Relays
- Audible/Visual Indicators
- IP54 Enclosure
- Relays control ventilation fans or signal a fire alarm panel
- LCD display clearly indicates current gas concentrations
- Meets NFPA, IFC, and NBIC Requirements | OSHA and NIOSH TWA standards
- Meets all local inspection codes and requirements
Works With:
- Remote CO2 Storage Safety 3 Alarm (RAD-0102-6-HS2)
- Oxygen Deficiency Depletion Safety Alarm (RAD-0002-ZR-HS2)
- Single Sensor CO2 Monitoring System (RAD-SEU-HS1)
-
Single Sensor O2 Deficiency Monitoring System (RAD-SEU-ZR-HS1)
- Power Monitor Unit (RAD-PMU)
Specifications
- CO2 Sensor Measurement 0-5% (0-50,000 ppm)
- O2 Sensor Range 0-25%
- Alarms (CO2) 5,000 ppm TWA, 5,000 ppm, 3% (user configurable)
- Alarms (O2) 19.5%, 16.5%, 12%
- Measurement Interval 2 seconds (0.5 Hz)
- Operating Temperature 32-122° F (0-50° C)
- Connections Standard RJ45
Sensor Coverage Approximately 1,500 sq. ft.
Electrical and Mechanical Specifications
- Power Supply 100-240 VAC 50/60 Hz to 12 VDC power adapter
- Voltage Range 9-32VDC
- Power Consumption 3 Watts
- Audible Alarm Level 88dB
- Relay Power Rating Peak current <2A @ 30 VDC or 250 VAC, SPDT
- Relay Connection Screw Terminal Connection
Warranty
- 1 year - See CO2Meter Terms and Conditions.
