The GasLab® Pro 100% Carbon Dioxide Sampling Data Logger is designed to measure carbon dioxide (co2) concentrations in enclosed environments, used primarily in fire suppression testing, biological research, incubation, scientific and medical applications.

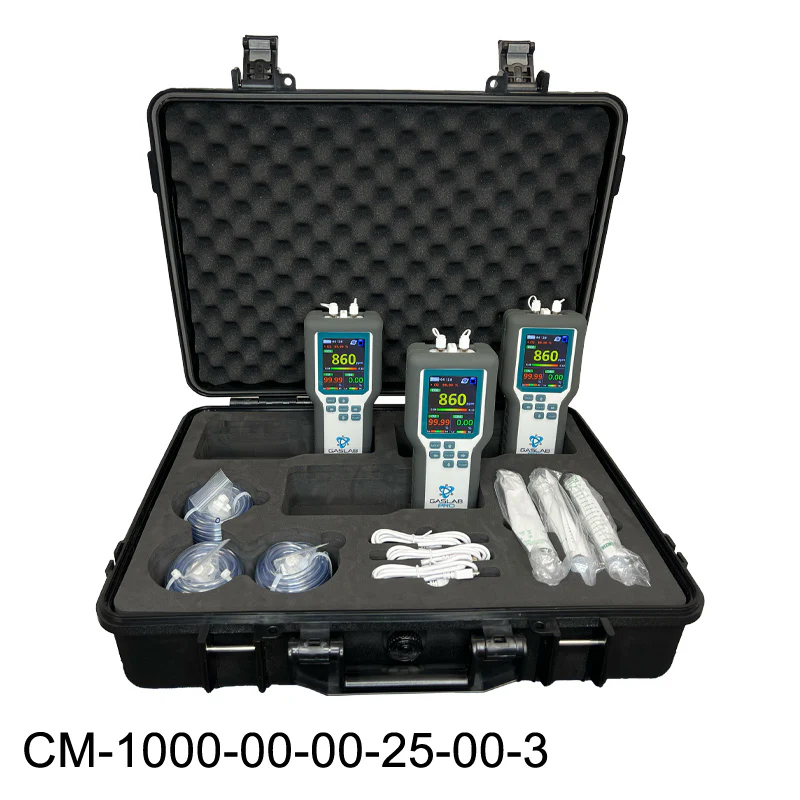

Are you conducting a Fire Suppression Test? Do you have to meet NFPA 12 & 17 requirements for CO2 concentration testing? If so, complete the required, simultaneous three-level testing with our 3 Pack of 100% Carbon Dioxide Sampling Data Loggers.
Features
- Gas Concentration: Carbon Dioxide (CO2)
- Includes: RH, AMB, DP, ALTI
- CO2 Measurement range: 0-100%
- Large, backlit LCD display for easy readability including graphing
- Audible Alarm
- Real-time data graphing
- Data Logging with micro SD Card (16GB included)
- Li-ion rechargeable batteries lasting 30+ hrs (3 included)

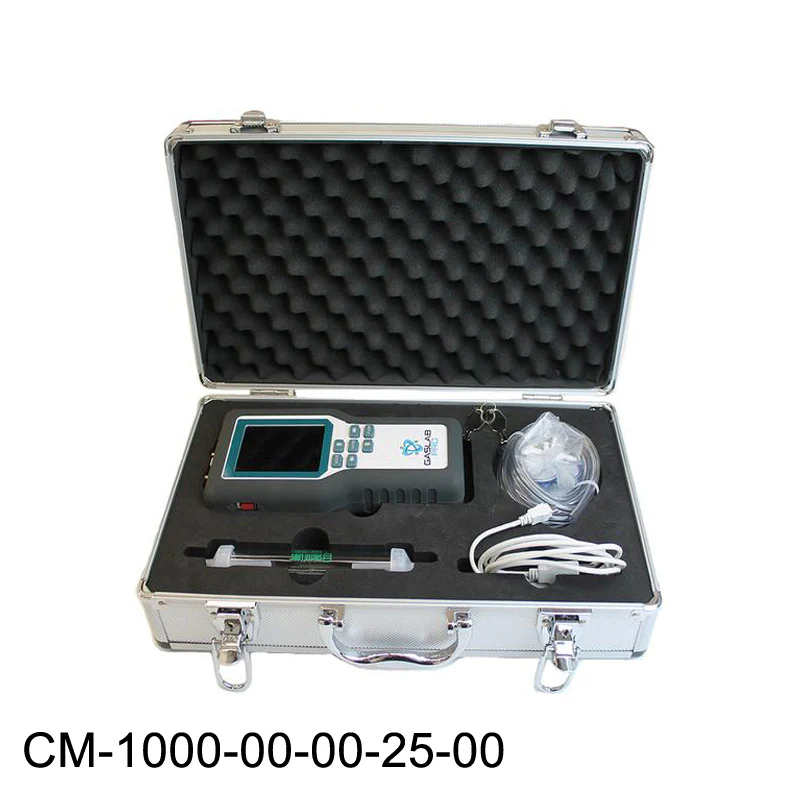

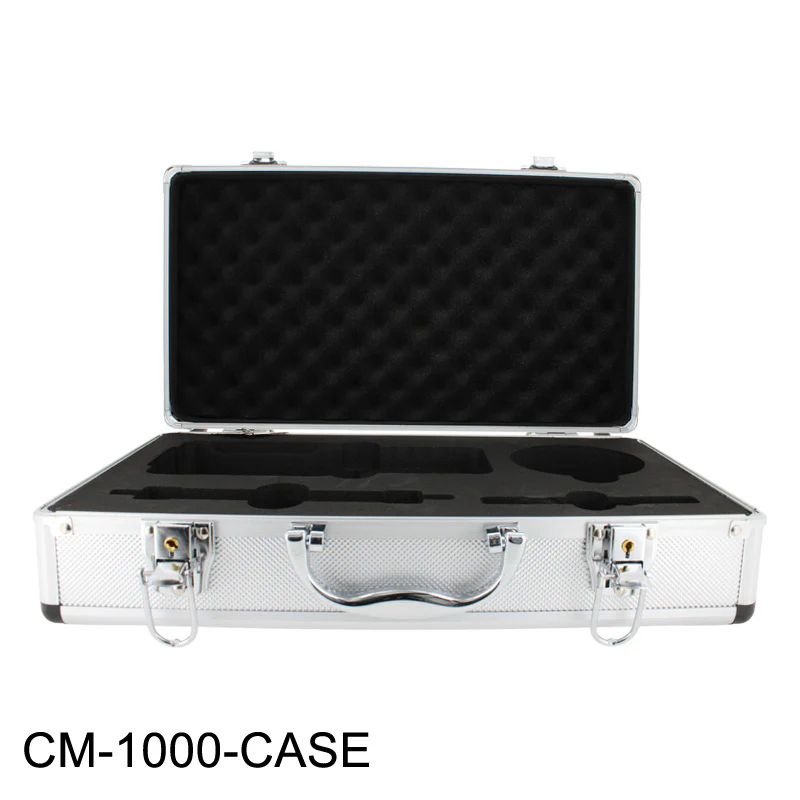

- Metal Carrying Case (Included)
Applications
- Fire Suppression Testing
- Animal euthanasia
- Pest control
- Safety
Specifications
- Sensing method: NDIR (Non-Dispersive Infrared)
- Measures: CO2 - 0-100%
- Temperature: 0~50°C,±1℃
- Barometer: 50~110kPa, ±0.4kPa
- Relative Humidity: 0~95%, ±3% @25°C (20~80%RH), others ±5%
- Accuracy: ±70 ppm +/- 5% of reading @ STP
- Alarm Volume: 80db ±5% @10cm
- Display Resolution: CO2: 1ppm, 10ppm, or 100ppm
- Operating Conditions: 0~50°C(32~122°F), 0~95%RH, non-condensing
- Storage Temperature: -20~60°C(-4~140°F)
- Power Supply: (3) Rechargeable Battery - Li-ion 18650 3.7V
- Weight: 305g (without batteries)
- Dimensions: 225.8 x 99.6 x 55 mm (8.9 x 3.9 x 2.2 in.)
Includes

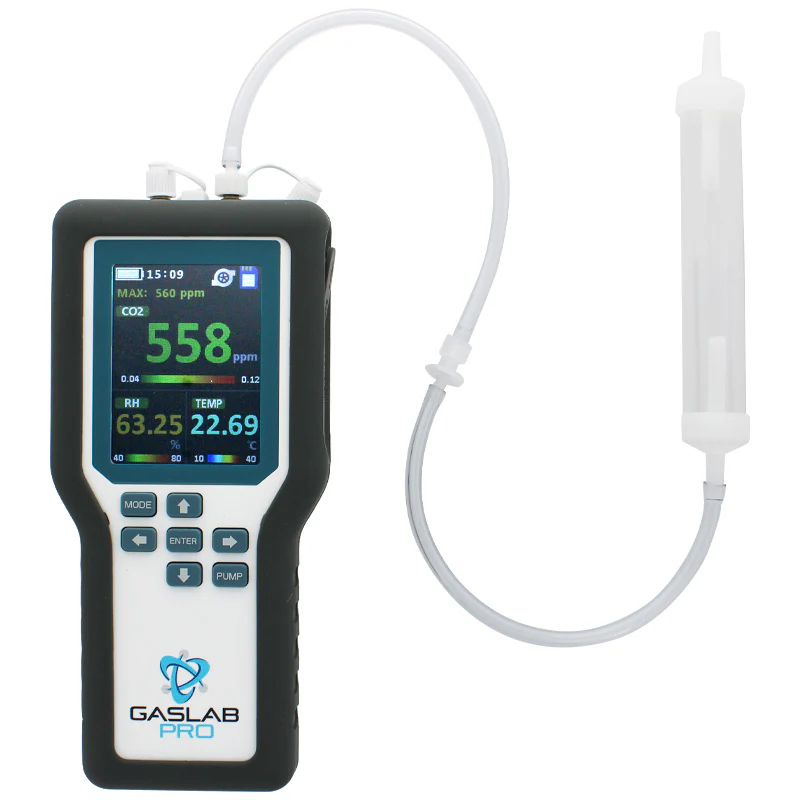

- Handheld CO2 Sampling Data Logger Detector
- Manual
- USB 1.5m cable
- 3 batteries
- 16 GB SD Card - includes calibration files
- Tubing - 3m 1/8" ID x 1/4" OD x 1/15" Wall Clear PVC Tubing
- Hydrophobic and Particulate Filters
- Water Trap
Please Note: The CM-1000 SD Card Contains Important Calibration Information, Do NOT remove files from the SD Card until you have thoroughly read and saved the calibration information. If a calibration certificate is required it must be requested at the time of purchase.
Warranty
- 1 year - See CO2Meter Terms and Conditions.
Documents
GasLab Pro Calibration SD Card Notice (pdf)
CM-1000 Video Playlist - Settings, Data Logging, Calibration (web)
Case Studies
Logged data and calibration files stored on the micro SD Card
The GasLab® Software is not compatible with this device.
Accessories
- BAT-18650 - EBL 18650 3.7V Li-ion Rechargeable Batteries - provide a fast charge and are upgraded ETL certified to be used with all CM-500 and CM-1000 series handheld gas detectors.
- EBL Universal Battery Charger - Charge the lithium batteries via a USB cable. Provides a clear indication of charge levels, turning green after fully charged.
